Structure and Design Principles of a Circuit Breaker Lock

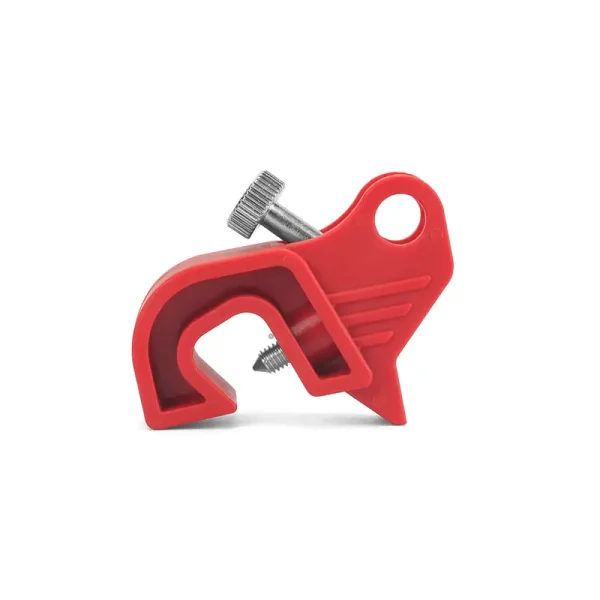

 A circuit breaker lock typically consists of a base and a cover that is hinged between the drive shaft and the base. The base is equipped with a primary chuck and a secondary chuck to secure the breaker handle. The base and the cover are designed with corresponding lock holes and latching points.

After the two chucks clamp onto the circuit breaker handle, the cover rotates to enclose the base and both chucks. The lock holes align with each other, allowing a padlock to pass through and secure the device. Because the outer cover fully wraps around the base and the two chucks, and the bottom edge of the base fits tightly against the surface of the circuit breaker, the cover cannot rotate freely. This ensures that the locking hole and latch remain firmly engaged.

As a result, the breaker toggle cannot be operated, effectively preventing accidental or unauthorized operation in practical use.

To tighten the second chuck, the extruder screw must be adjusted and rotated several times, bringing the second chuck closer to the first until a secure grip is achieved.

Over time, the core concept of circuit breaker lock design has become well established. Why has the design evolved so significantly from earlier styles to newer ones? The answer lies in convenience and efficiency. Modern designs allow the breaker to be locked quickly and easily.

Looking at the fundamental principle, the evolution of circuit breaker locks through continuous technological refinement has made the structure more robust and reliable compared to older models. In earlier products, locking often required more complicated procedures or greater effort. Even today, many locking devices on the market still rely on various complex locking mechanisms.

Some methods appear simple but are actually cumbersome in practice. In contrast, this type of circuit breaker lock may not seem the most basic in structure, but it is certainly one of the most efficient and labor saving solutions available. It is particularly well suited for practical industrial applications.
