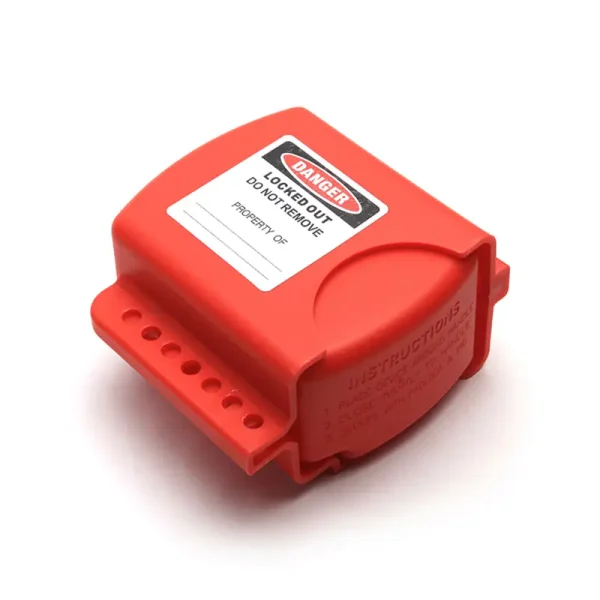

Classification of Ball Valve Lockouts

 Ball valve lockouts are devices made of high-strength polypropylene plastic. They are fully insulated and offer excellent resistance to solvents and other chemical substances, along with outstanding impact resistance and wear durability.

Available colors include red, yellow, blue, and green.

Double-Arm Universal Ball Valve Lockout
The newly designed WELKEN double-arm universal ball valve lockout is made of industrial-grade high-strength resin and reinforced steel. Its advanced upper trapezoidal tooth design enhances the grip and strength on the valve handle.

The gear engagement of the rotating arms is tighter, improving safety performance. The newly designed two-stage adjustable swing arm length allows for more precise and convenient operation. It also features strong impact resistance and superior chemical resistance, representing one of the most advanced double-arm universal ball valve lockouts in the world.

Single-Arm Universal Ball Valve Lockout
The single-arm universal ball valve lockout is also constructed from industrial-grade high-strength resin and reinforced steel. The advanced upper trapezoidal tooth design improves the grip and strength on the valve handle.

The tighter meshing of the rotating arm enhances safety performance. The newly designed two-stage adjustable swing arm length provides greater precision and convenience. It offers excellent impact resistance and outstanding chemical resistance, making it one of the most advanced single-arm universal ball valve lockouts available.

Specifications

  • Temperature range: -40°C to 180°C
  • Suitable handle width: 19 mm – 46 mm
  • Suitable handle thickness: up to 25 mm
  • Rotating arm length: 170 mm
  • Adjustable range of rotating arm: 55 mm
  • Total weight: 720 g

Ball Valve Lockout Selection Process

  1. Determine the total number of ball valves at the factory.
  2. Identify the sizes of the ball valves and count the quantity in each size range.
  3. Determine the locking frequency for ball valves of each size in the factory.
  4. Determine the required number of lockouts for straight ball valves and ball valves with stop arms.
